Heavy-Duty Customizable Anti-Corrosion Non-Slip Breathable Steel Grating Galvanized Steel Type

Αναθεωρήσεις πελατών
Η σχάρα μου ήρθε σήμερα και αυτό τακτοποίηση τέλεια. Σας ευχαριστούμε. Με ενημερώστε εάν υπάρχει οπουδήποτε ότι μπορώ να αφήσω θετικός ανατροφοδοτώ για την επιχείρησή σας!

—— Andrew Mullen

Είμαι Online Chat Now

Heavy-Duty Customizable Anti-Corrosion Non-Slip Breathable Steel Grating Galvanized Steel Type

Heavy-Duty Customizable Anti-Corrosion Non-Slip Breathable Steel Grating Galvanized Steel Type
Heavy-Duty Customizable Anti-Corrosion Non-Slip Breathable Steel Grating Galvanized Steel Type Heavy-Duty Customizable Anti-Corrosion Non-Slip Breathable Steel Grating Galvanized Steel Type Heavy-Duty Customizable Anti-Corrosion Non-Slip Breathable Steel Grating Galvanized Steel Type

Μεγάλες Εικόνας :  Heavy-Duty Customizable Anti-Corrosion Non-Slip Breathable Steel Grating Galvanized Steel Type

Λεπτομέρειες:
Τόπος καταγωγής: ΚΙΝΑ
Μάρκα: GNEE
Πιστοποίηση: SGS
Πληρωμής & Αποστολής Όροι:
Τιμή: negotiable
Συσκευασία λεπτομέρειες: Συσκευασία-άξια θάλασσα, δηλαδή ξύλινη ή χαλύβδινη δίσκο με χαλύβδινη λωρίδα κ.λπ.
Χρόνος παράδοσης: 5-9 εργάσιμες ημέρες
Όροι πληρωμής: Διαπραγματεύσιμος
Δυνατότητα προσφοράς: 100 τόνοι/εβδομάδα

Heavy-Duty Customizable Anti-Corrosion Non-Slip Breathable Steel Grating Galvanized Steel Type

περιγραφή
Επισημαίνω:

heavy-duty steel grating galvanized

,

customizable anti-corrosion steel grating

,

non-slip breathable steel grating

Heavy-Duty Customizable Anti-Corrosion Non-Slip Breathable Steel Grating Galvanized Steel Type
Steel bar grating with high strength and firm structure is made up of carbon steel, aluminum steel, or stainless steel. According to the manufacturing methods, it can be divided into four types: welded, press-locked, swage-locked, and riveted gratings. According to the surface shapes, it can be divided into smooth and serrated gratings. With various styles and sizes for choice, steel gratings are widely used in everyday life, such as stair treads, walkways, platforms, floors, various covers, wheeled equipment, security screens, heavy-duty constructions, and so on.
Heavy-Duty Customizable Anti-Corrosion Non-Slip Breathable Steel Grating Galvanized Steel Type 0
Customization Options
  • Bearing bar depth
  • Bearing bar thickness
  • Bearing bar pitch
  • Cross bar pitch
  • Span and Width (mesh size)
Common Applications
Flooring, catwalk, decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment and heavy equipment areas, etc.
Material Specifications
Material Standard Bearing Bar Cross Bar Bearing Bar Pitch Cross Bar Pitch
Q235 25mm*3mm 5mm 20mm 50mm
25mm*5mm
30mm*3mm
Q345 30mm*5mm 5mm 27mm 50mm
32mm*3mm
ASTM A36 32mm*5mm 6mm 30mm 100mm
35mm*5mm
40mm*3mm
40mm*5mm
ASTM A1011 50mm*5mm 8mm 32mm 100mm
60mm*5mm
60mm*8mm
75mm*5mm
75mm*8mm

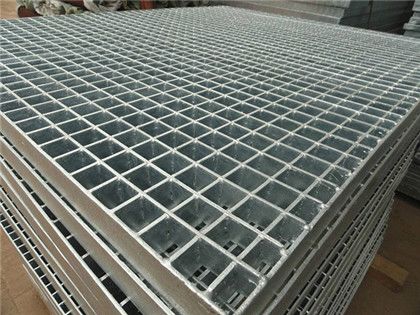

Heavy-Duty Customizable Anti-Corrosion Non-Slip Breathable Steel Grating Galvanized Steel Type 1

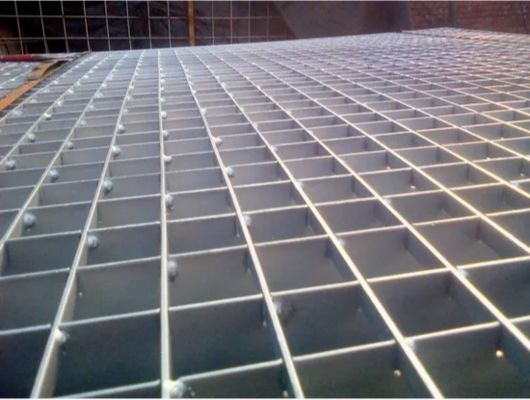

Heavy-Duty Customizable Anti-Corrosion Non-Slip Breathable Steel Grating Galvanized Steel Type 2

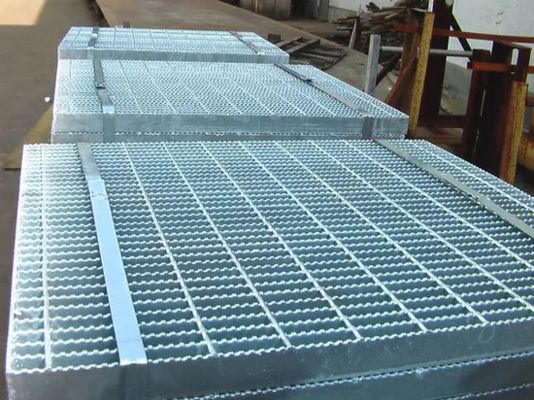

Heavy-Duty Customizable Anti-Corrosion Non-Slip Breathable Steel Grating Galvanized Steel Type 3
